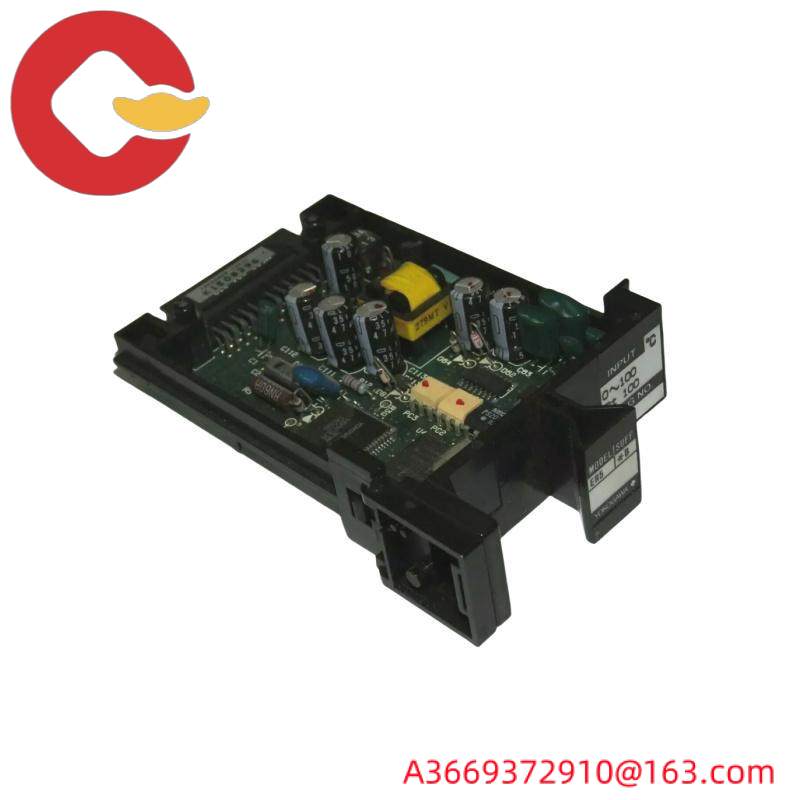

Yokogawa ER5*B RTD Input Module – Temperature Sensing for Precision Control

Module Type:Input

Module Series:ER5*BR

Application Range:-200°C to +150°C

Input Capacity:Single RTD input

Accuracy:±0.1°C (max.)

Operating Voltage:24VDC

Relay Output:1 SPDT contact, 10 A @ 250VAC, 10A @ 30VDC

Communication Interface:MODBUS RTU

Enclosure Rating:IP65

Mounting:Panel Mount

    The Yokogawa ER5*B RTD Input Module is engineered to provide unparalleled accuracy and reliability in temperature measurement, making it an indispensable component in industrial control systems. It seamlessly integrates with various automation platforms, offering seamless data transmission and control capabilities.

    Featuring a wide input range, this module can handle temperatures from as low as -200°C up to +850°C, covering a vast spectrum of industrial applications. Its ±0.1°C accuracy at 25°C ensures precise temperature readings, critical for process control and quality assurance.

    Equipped with advanced signal processing technology, the ER5*B boasts an impressive response time of less than 2 seconds, minimizing delays and enhancing operational efficiency. This feature is particularly beneficial in dynamic environments where quick response is essential.

    With its power consumption optimized to a maximum of 5 mA, the module efficiently operates on a 10…30VDC supply, reducing energy costs and enhancing system reliability. The inclusion of two independent SPDT relays further enhances its functionality, allowing for versatile integration and control scenarios.

    Designed with ease of installation in mind, the Yokogawa ER5*B RTD Input Module utilizes a 4-wire RTD connection, ensuring a secure and stable data transmission path. Its robust construction and compact design make it suitable for various industrial settings, from harsh factory floors to cleanroom environments.
