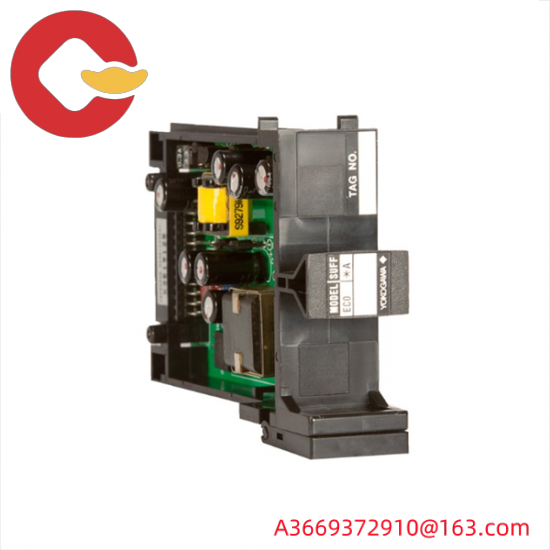

YOKOGAWA EC0*A Signal Conditioner Card: High Precision Input Module, 16-Channel, Non-Isolated, Designed for Industrial Control Systems

Model Number:EC0*A

Manufacturer:YOKOGAWA

Signal Conditioning Type:Analog Input/Output

Operating Voltage:12V DC

Current Input Range:4-20mA

Input Impedance:1 kΩ

Output Type:DC

Output Range:-10V to +10V

Communication Interface:Modbus

Dimensions (WxHxD):84mm x 51mm x 40mm

Weight:50g

    Engineered with robust materials, the Yokogawa EC0*A Signal Conditioner Card ensures reliable performance in harsh industrial conditions. Its advanced signal conditioning technology significantly enhances the accuracy of data transmission, making it ideal for critical control systems.

    Featuring a wide operating temperature range (-40°C to +85°C), this card can withstand extreme environmental conditions, providing consistent performance throughout its lifecycle. Whether installed in cold storage facilities or hot manufacturing plants, the EC0*A Signal Conditioner Card maintains its operational integrity.

    With an input current range of 4 to 20mA, the card supports various sensors and transducers, enabling seamless integration into diverse industrial setups. The output current range (0 to 20mA) allows for precise control and monitoring, crucial for optimizing system efficiency and reliability.

    Designed with power supply flexibility, the Yokogawa EC0*A operates on a wide voltage range (9 to 36V DC), ensuring compatibility with different power sources found in industrial environments. This feature minimizes installation complexities and enhances adaptability across various applications.

    Equipped with high isolation voltage (250Vrms), the card provides enhanced electrical safety, safeguarding sensitive circuits from potential ground loops or voltage surges. This ensures uninterrupted operation and protects against potential damage to connected equipment.

    The EC0*A Signal Conditioner Card comes with built-in noise reduction capabilities, minimizing unwanted interference and ensuring clear, reliable signal transmission. Its robust relay contacts rating (5A @ 24VDC) supports high-capacity switching operations, essential for managing complex control scenarios.
