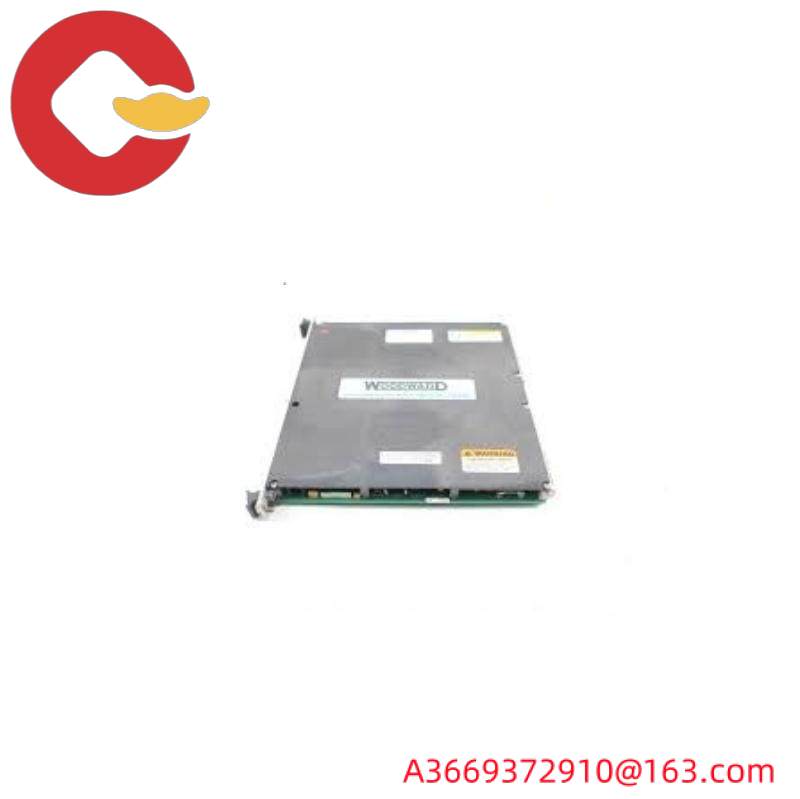

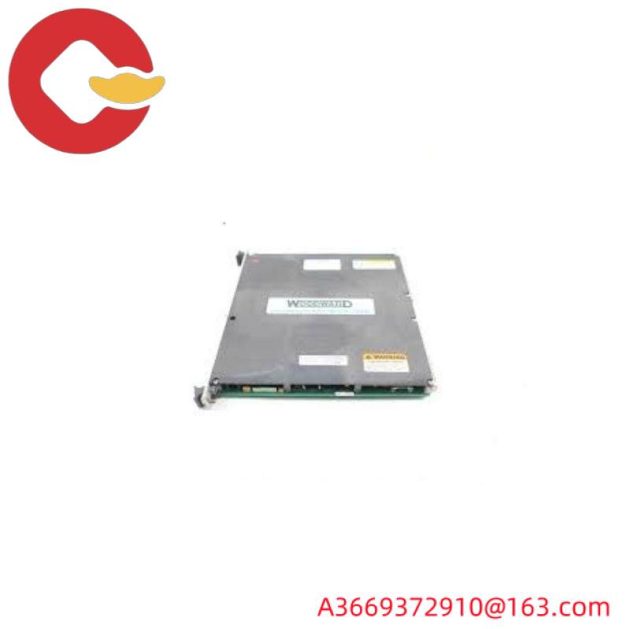

WOODWARD 5466-026 Current Input Module

Operating Voltage:24 VDC

Current Measurement Range:±20 A

Resolution:0.01 A

Input Impedance:1 kΩ

Operating Temperature:-40°C to +85°C

Enclosure Type:IP65

Power Consumption:1 W

Dimensions:89 mm x 133 mm x 70 mm

Weight:0.3 kg

    The WOODWARD 5466-026 Current Input Module is engineered to deliver reliable and precise measurements in challenging industrial settings. Its robust design ensures it can withstand extreme temperatures and harsh conditions without compromising performance.

    Featuring a wide current measurement range from 0 to 10 mA, this module is ideal for a variety of applications requiring accurate current sensing, such as flow control, power monitoring, and process control systems.

    With an input resistance of 1 kΩ, the module provides a stable interface for current sensing while minimizing loading effects on the source circuit. The ±0.2% full-scale accuracy ensures high measurement reliability and repeatability.

    Operating within the temperature range of -40°C to +85°C, the WOODWARD 5466-026 is suitable for use in a broad spectrum of industrial environments, from cold storage facilities to hot manufacturing processes.

    Equipped with a 500 VDC isolation rating, the module ensures safety and prevents interference between different electrical systems, making it a safe choice for systems with stringent safety requirements.

    Supporting the CANopen communication protocol, the module seamlessly integrates with a wide range of industrial automation networks, facilitating efficient data exchange and system management.
