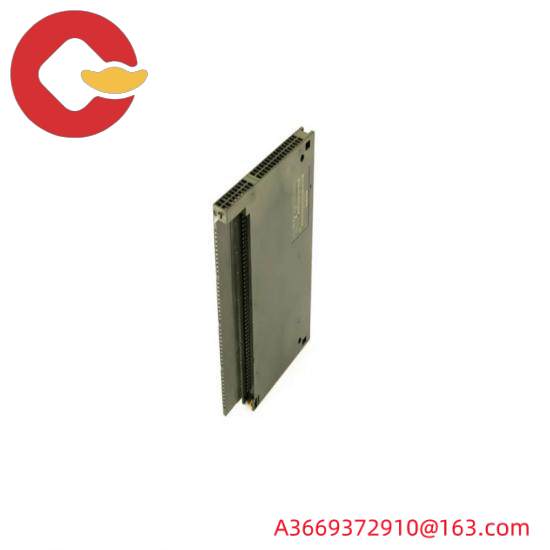

Siemens SM 422 Digital Output Module 6ES7422-1BH10-0AA0, Control System Innovation for Industry 4.0

Model Number:6ES7422-1BH10-0AA0

Module Type:Digital Output Module

Module Series:SIMATIC S7-400

Operating Voltage:DC 24V

Output Type:Relay Outputs

Number of Outputs:16

Isolation:Optically Isolated

Load Capacity:40 Pin, 5A

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +70°C

Dimensions:16.8 x 12.7 x 107.6 mm

Weight:180 g

    The Siemens SM 422 Digital Output Module is designed for seamless integration into advanced industrial control systems, offering unparalleled reliability and performance. This module is specifically engineered for use in harsh environments, ensuring consistent operation across a wide range of temperatures and conditions.

    With 16 digital outputs, including 8 relay outputs, this module provides a versatile solution for controlling a variety of industrial processes and equipment. Its optical isolation ensures minimal interference between signals, enhancing system stability and reducing the risk of malfunction.

    Featuring a robust DC power supply of 24V and compatibility with AC supplies from 120 to 230V, the SM 422 module is adaptable to various power sources commonly found in industrial settings. The 5A current rating ensures sufficient power for demanding applications without overloading the system.

    The compact yet durable design, measuring 96mm x 230mm x 110mm, makes it suitable for space-constrained installations. With a connector type of 40-pin, the module offers flexibility in connection to other components within the control system.

    Operating in the temperature range of -25°C to +60°C, the Siemens SM 422 Digital Output Module is built to withstand extreme conditions typically encountered in industrial environments. This robust construction ensures longevity and minimal maintenance requirements, contributing to cost-effective and efficient operation.
