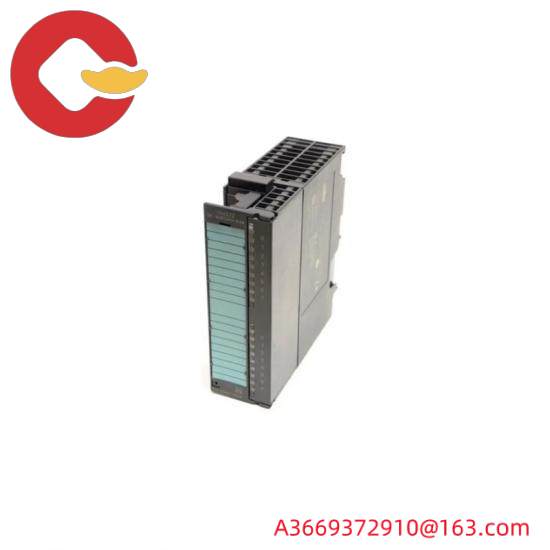

Siemens 6ES7322-8BH10-0AB0 Digital Output SM 322 – High-Precision Control for Industrial Automation

Manufacturer:Siemens

Model Number:6ES7322-8BH10-0AB0

Module Type:Digital Output

Module Designation:SM 322

Optical Isolation:Yes

Number of Channels:16

Channel Type:Relay Contacts

Power Supply Voltage:DC 24V

Current Rating:10mA

Signal Capability:Capable of handling signals from hazardous areas

Diagnostic Function:Built-in diagnostic function for immediate system status feedback

Environmental Certification:PTB-tested

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Enclosure Type:IP20

Mounting:Panel or DIN rail

Connector Type:20-pin

Dimensions:Width x Height x Depth: 125mm x 110mm x 100mm

Weight:Approx. 0.5kg

    Engineered for industrial-grade performance, the Siemens 6ES7322-8BH10-0AB0 digital output module delivers unparalleled reliability and precision in signal transmission. This robust module is meticulously designed with advanced optical isolation technology, ensuring complete electrical separation from the control system, which significantly enhances system safety and reduces the risk of electrical interference.

    With its compact size and versatile 16-channel configuration, this module seamlessly integrates into existing control systems, enhancing efficiency without compromising on space. Each channel supports relay contacts capable of handling up to 10mA, making it suitable for a wide range of load types, including those requiring higher current ratings.

    Featuring a DC 24V operating voltage, the module is equipped with a powerful load capacity of 5A at DC 24V, ensuring it can handle even the most demanding applications. The inclusion of a built-in snubber circuit protects against voltage spikes, safeguarding against potential damage to sensitive equipment.

    Designed with user convenience in mind, the Siemens 6ES7322-8BH10-0AB0 offers an intuitive DIAGNOSIS function for easy troubleshooting and maintenance. The IP20 enclosure provides protection against dust and light splashes, ensuring durability in industrial environments. It’s CE, UL certified, and PTB-tested for quality assurance, making it a trusted choice for global applications.

    Whether you’re looking to upgrade existing systems or build new ones, the Siemens 6ES7322-8BH10-0AB0 digital output module is your go-to solution for achieving exceptional control accuracy and system reliability in industrial settings.
