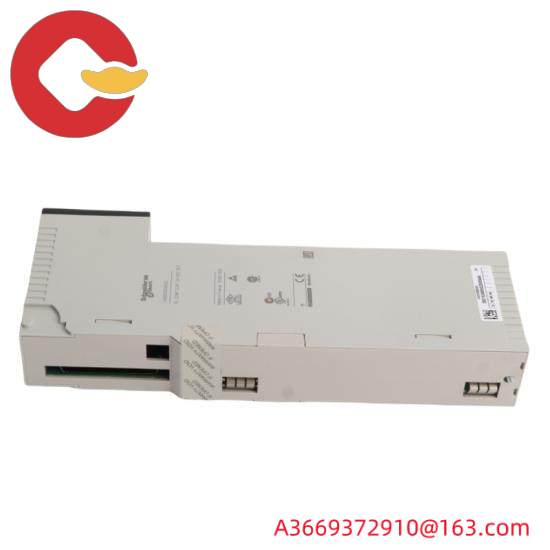

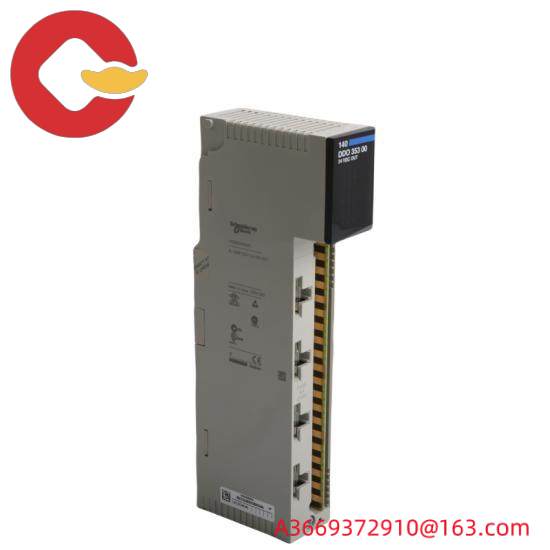

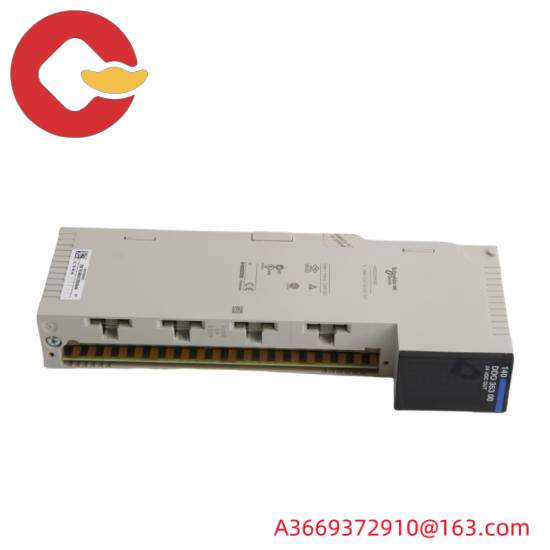

Schneider Modicon Quantum 140DDO35300 Discrete Output Module

Product Type:Discrete Output Module

Module ID:140DDO35300

Modicon Type Designation:Quantum

Range of Product:Modicon Quantum Automation Platform

Component Type:Low Voltage DC

Discrete Output Number:32

Groups of Channels:4 groups of 8

Discrete Output Voltage:24 V DC

Power Dissipation:1.75 W + (0.4 V x total module load current)

Bus Current Requirement:330 mA

Product Weight:0.99 lb (US) / 0.45 kg

Voltage Limits:19.2…30 V

Input Impedance:2500 Ohm

Maximum Leakage Current:200 mA at Us = 5.5 V and Uin = 4 V

Absolute Maximum Input:30 V continuous / 56 V during 1.3 ms decaying pulse

    The Schneider Modicon Quantum 140DDO35300 discrete output module is engineered for seamless integration into complex industrial automation systems. Its robust design ensures reliable performance under challenging conditions.

    With 32 discrete outputs grouped in four sets of eight, this module provides ample capacity for diverse control applications, making it suitable for various industries including manufacturing, energy, and process control.

    Equipped with advanced features, the module supports efficient power management, enabling precise control over devices and processes. Its compatibility with the Modicon Quantum automation platform ensures seamless operation within existing industrial ecosystems.

    Featuring a low voltage DC output of 24 V, the 140DDO35300 is ideal for applications requiring high precision and reliability. Its power dissipation capability allows for efficient operation, minimizing energy consumption.

    Crafted from high-quality materials, the module is built to withstand the rigors of industrial environments, ensuring longevity and maintenance-free operation. Installation and setup are straightforward, thanks to its user-friendly interface and comprehensive documentation.
