Functional Acronym:VSVO
Functional Description:VME Servo Board
Functional Revision:1B
PCB Coating:Conformal Coating
Artwork Revision😀
Number of Connectors:6
Relays:4
Integrated Circuits:Over 70
Test Points:TP
Inductor Beads:L1-L10

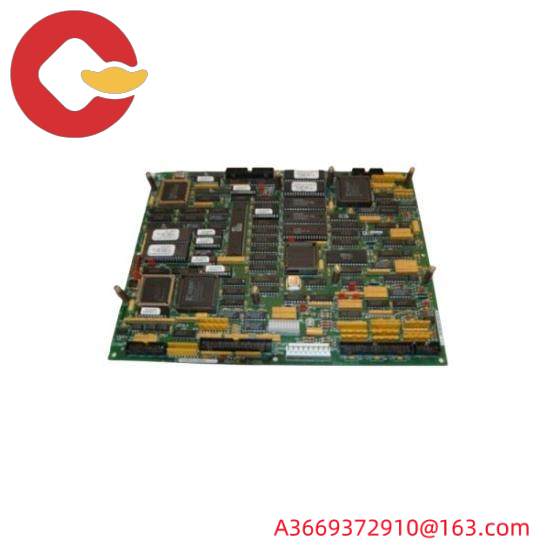

The GE VSV0 H1B IS200VSVOH1BED Control Board is a precision-engineered solution designed to optimize the operational efficiency of gas turbine systems. This board is part of the renowned Speedtronic series, known for its reliability and robustness in harsh industrial environments.
Featuring advanced conformal coating technology, it ensures reliable performance even in dusty and corrosive conditions, enhancing durability and longevity.
With a total of six connectors, including two backplanes and four conductive traces, the board provides flexible integration options for various industrial control systems.
Equipped with four relays, this board offers precise switching capabilities, crucial for managing the flow and direction of power within the turbine system.
The inclusion of over seventy integrated circuits enables complex signal processing, facilitating accurate speed control and monitoring, essential for maintaining optimal turbine performance.
