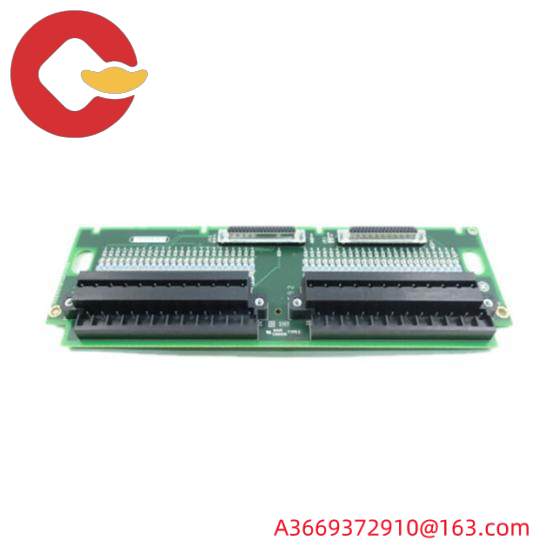

GE-FANUC IS200TBTCH1C Thermocouple Input Terminal Board

Product Type:Thermocouple Input Terminal Board

Model Number:IS200TBTCH1C

Brand:GE Fanuc

Dimensions:33 cm x 10.2 cm x 4.8 cm

Weight:0.54 kg

Temperature Range:-40°C to 85°C

Number of Inputs:16

Connectivity:RS-485

Operating Voltage:24 VDC

Operating Current:10 mA

Environmental Conditions:IP20 Enclosure, 95% Humidity

Compatibility:Mark VI and Mark VIe Excitation Control Systems

    The GE-FANUC IS200TBTCH1C Thermocouple Input Terminal Board is a crucial component for industrial automation systems, ensuring accurate temperature measurements with its robust thermocouple input channels. Its compatibility with a wide range of thermocouple types (J, K, T, E, S, R, B, C) makes it versatile for various industrial applications. The board is designed for durability and reliability within extreme temperature ranges (-40°C to +70°C), ensuring stable operation in challenging environments.

    Featuring an 8-channel configuration, this terminal board can handle multiple temperature sensors simultaneously, making it ideal for systems requiring extensive monitoring capabilities. The modular design allows for easy integration into existing control systems, offering seamless connectivity through its Modbus RTU compatible communication interface.

    Engineered with precision in mind, each channel supports a maximum current load of 20mA, providing reliable power supply to connected thermocouples without compromising accuracy. The board’s compact size and panel mount design facilitate efficient installation and space management in industrial settings.

    Designed with safety and longevity in mind, the GE-FANUC IS200TBTCH1C is manufactured using high-quality materials to withstand harsh industrial conditions. Its robust construction ensures minimal maintenance requirements, reducing downtime and enhancing operational efficiency.

    For users seeking precision, reliability, and versatility in their industrial control systems, the GE-FANUC IS200TBTCH1C Thermocouple Input Terminal Board is an exceptional choice. It delivers accurate temperature readings, supports a broad range of thermocouple types, and integrates seamlessly into existing setups, making it a valuable addition to any industrial automation project.
