Voltage Rating:1500 V rms
Compatibility:J, K, and M-style Mark V Series frame components
Number of Wire Jumpers:4
Board Position:Located behind the drive control and power supply board
Mounting Method:Secured with two boards onto a board carrier using six plastic holders
Standardized Components:Mark V Series-standardized voltage-limiting hardware components

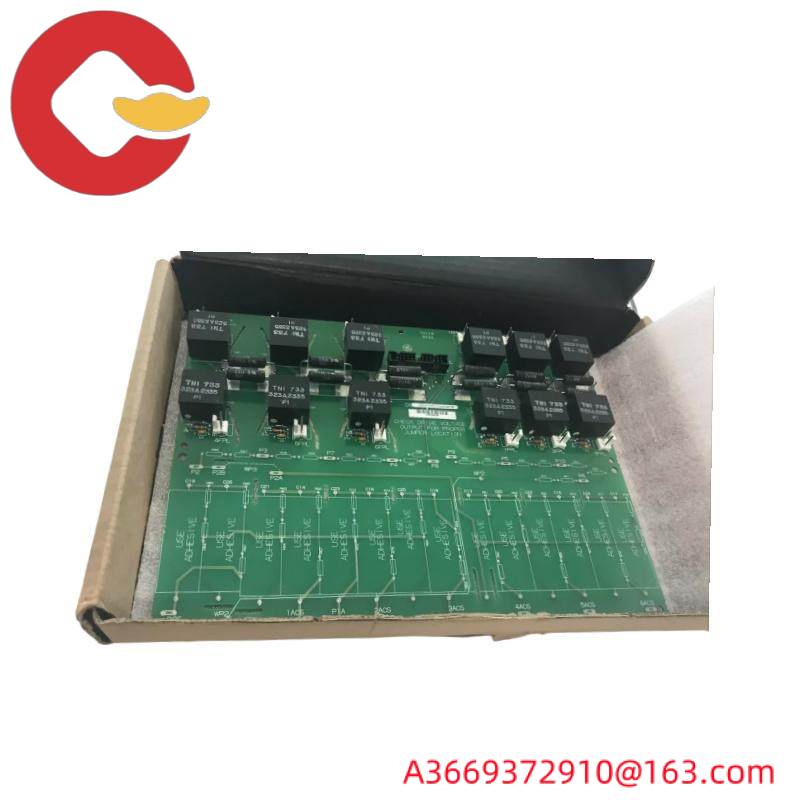

The GE DS200PCCAG5ACB Power Connect Card is meticulously designed for integration into the GE Industrial Control Systems’ Mark V series, offering unparalleled performance and reliability.
Equipped with a robust base circuit board featuring strategically placed drilled holes insulated with protective materials, ensuring durability and safety.
Leg reactors and fuses, alongside separate or common bus transformers, contribute to the card’s efficient power management capabilities, making it a critical component in high-voltage applications.
With a maximum AX voltage rating of 1500 V rms, the DS200PCCAG5ACB is compatible with a wide range of J, K, and M-style Mark V Series frame components, facilitating versatile installation options.
Comprising four essential wire jumpers (WP4, WP3, JP2, JP1), the card facilitates precise electrical connections, enhancing system stability and reducing downtime.
Engineered for operation within extreme temperature ranges (-40°C to +85°C), the DS200PCCAG5ACB ensures continuous performance in challenging industrial environments, making it a reliable choice for demanding applications.
