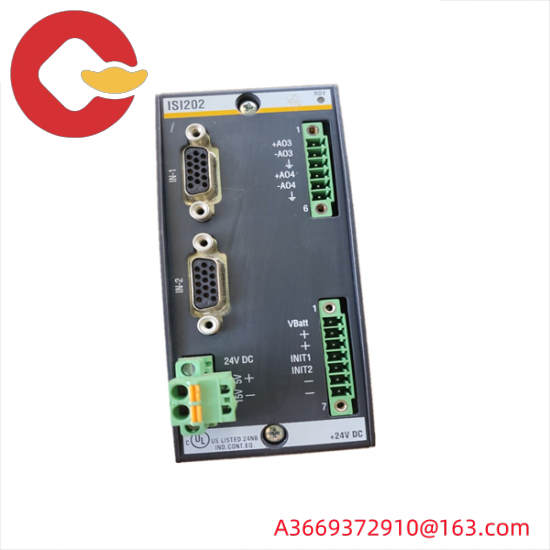

Bachmann ISI222 Encoder Interface Module, PLC Positioning Module

Product Type:Encoder Interface Module

Brand:Bachmann

Model:ISI202

Counter Resolution:32-bit

Output Voltage Range:+5 V to +15 V selectable with jumper, 24 V looped through

Output Voltage:±10 V

Output Current:Max. ±2 mA

Positioning Module Features:2x INC/SSI inputs @ 1 MHz, 32-bit position accuracy, RS422 level, INC A, A/B/N

Trigger Functionality:Gate time, period, velocity, encoder supply @ 5V / 15V / 24V

Digital Inputs:2x DI 24V, trigger, homing

Protocol Compatibility:CANopen to CiA DS 301

Current Consumption:320 mA / 5 VDC

Transfer Rate:10 k to 1 Mbaud

    The Bachmann ISI222 Encoder Interface Module is a robust and reliable solution for precise positioning tasks in various industrial settings. This module is equipped with advanced features that ensure accurate and consistent performance.

    Featuring a 32-bit counter resolution, the module delivers exceptional precision in position calculations. Its versatile output voltage range, selectable by a jumper, offers compatibility with different power sources, enhancing its adaptability across various applications.

    With a maximum output current of ±2 mA, the module is capable of driving small actuators or performing complex control tasks efficiently. Its compatibility with CANopen and CiA DS 301 protocols ensures seamless integration with modern industrial automation systems.

    Equipped with a current consumption of 320 mA at 5 VDC, this module is energy-efficient, making it an eco-friendly choice for power-sensitive environments. The transfer rate from 10 k to 1 Mbaud allows for fast data communication, improving system responsiveness.

    Supporting up to four masters per M1 controller, the module facilitates efficient management of multiple devices within a network. With a maximum of 64 nodes per CAN bus, it supports large-scale industrial setups, enhancing system scalability.
