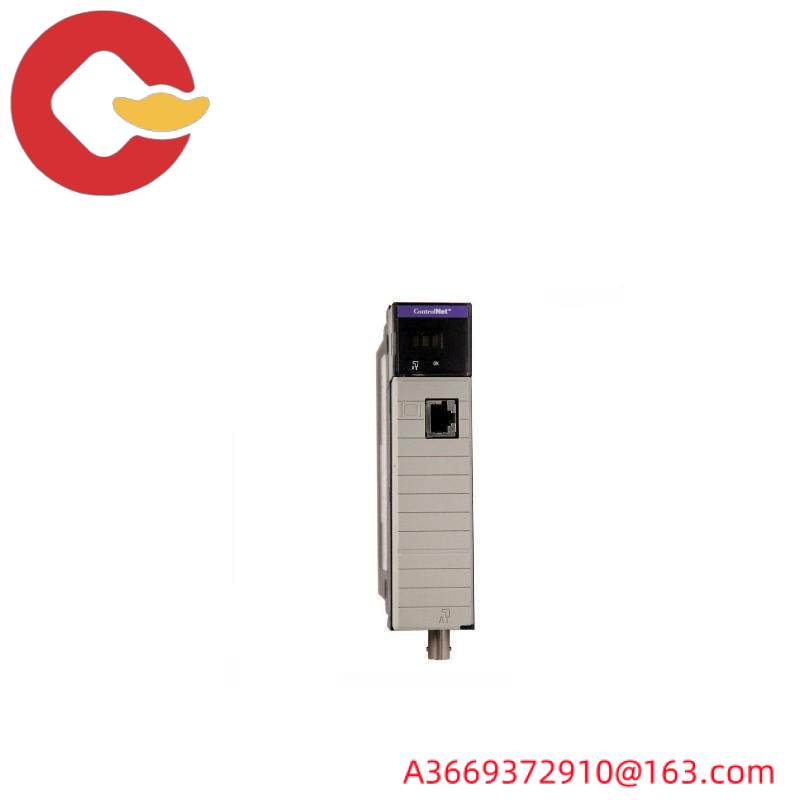

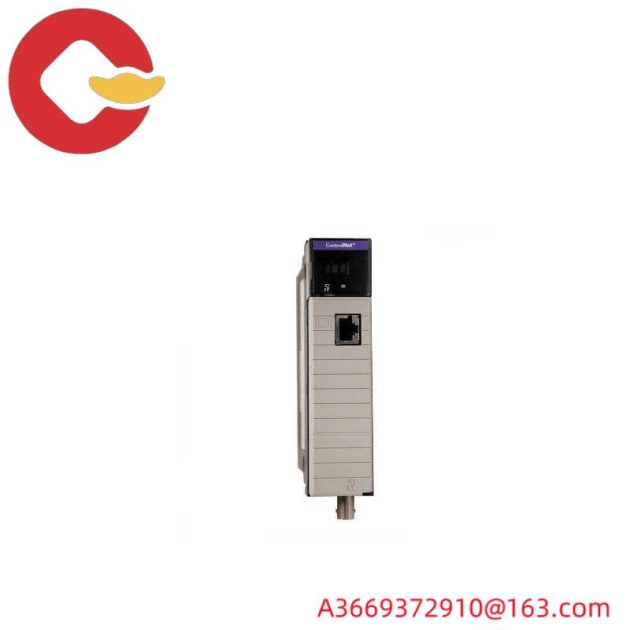

Model Type:ControlLogix Bridge Module
Model Number:1756-CNB/D
Manufacturer:Allen Bradley
Communication Protocol:ControlNet
Number of Channels:2
Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC
Isolation:30 V (Continuous)
Enclosure Type:Open Type
RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz
Temperature Range:Operating: -40°C to +85°C, Storage: -55°C to +125°C
The Allen Bradley 1756-CNBD ControlLogix Bridge Module is designed for advanced networking in industrial automation environments. It seamlessly connects ControlLogix systems with DeviceNet devices, enabling enhanced data exchange and system integration.
This module boasts a redundant design with two channels, ensuring reliable operation even under varying conditions. Its high current rating of 970 mA at 5.1 VDC and 1.7 mA at 24 VDC supports efficient power delivery for diverse applications.
With an open type enclosure, the module ensures robust protection against environmental influences while maintaining high performance standards. The integrated RFI suppression technology ensures minimal interference, guaranteeing stable communication over the entire frequency spectrum.
Ideal for applications requiring high-speed data transfer and enhanced security, the 1756-CNBD module is equipped with a 30 V continuous isolation level, safeguarding against electrical hazards and maintaining operational integrity.
Easy to integrate into existing ControlLogix systems, this module simplifies network expansion and system upgrades. Its compatibility with various industrial protocols facilitates seamless integration with a wide range of devices, optimizing overall system performance.
