Input Voltage (AC):230-480V rms, 3-Phase
Frequency (AC):47-63 Hz
Continuous Output Current:7 A
Intermittent Output Current:14 A
Output Power:1.5 kW @ 230VAC, 3.0 kW @ 460VAC
Control Specifications:Commutation with 3-Phase Sinusoidal, SVM, Digital PI Current Regulator, Digital PID Velocity & Position Regulators
Bus Overvoltage:452V DC
Shunt On:420V DC
Weight:22.96 lbs

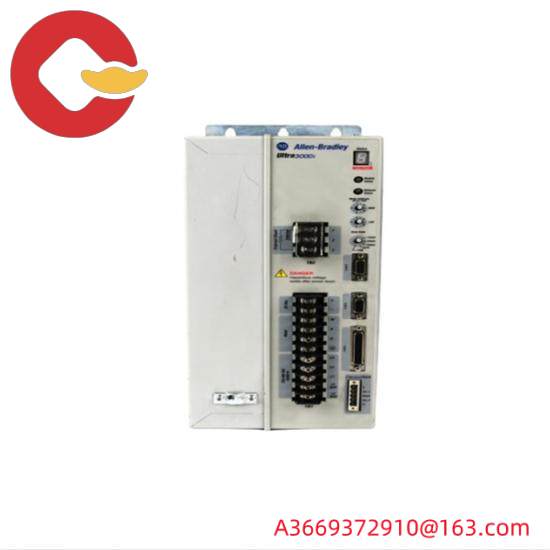

The 2098-DSD-HV150X-DN Servo Drive is engineered for seamless integration into various industrial applications, maximizing efficiency and performance. Its robust design ensures reliable operation under demanding conditions, backed by Allen-Bradley’s commitment to quality and reliability.
This high-voltage servo drive offers versatile control options, supporting advanced motion profiles such as SVM and precise regulation through Digital PI and PID algorithms, ensuring smooth and accurate movement across multiple axes.
Built with state-of-the-art technology, the drive features an internal shunt resistance of 40 Ohms, optimizing power delivery and enhancing overall system stability. It also includes an auxiliary power supply feature, providing additional power resources for system accessories.
The compact yet powerful design of the 2098-DSD-HV150X-DN allows for easy installation and integration within existing automation systems. Its modular construction facilitates flexible setup and scalability, making it suitable for both new installations and upgrades.
Compliance with industry standards ensures compatibility with a wide range of Allen-Bradley Logix 5000 series controller platforms and interface modules, simplifying the integration process and enhancing the overall system performance.
