Model Type:SLC 500
Model Number:1746SC-INO4VI
Manufacturer:Allen Bradley
Number of Channels:2 Input, 2 Output
Input Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)
Input Current Range:-30 To 30 MA
Output Voltage Range:-10 To 10 V – 1 LSB
Full Scale Output Voltage:10 VDC
Overvoltage Protection:7.5 VAC RMS
Input Range:-10 To 10 VDC – 1 LSB
Environmental Conditions:Operating: 0 – 60 DEG C, Storage: -40 – 85 DEG C
Relative Humidity:5 – 95%, Non-Condensing
Shock Resistance:30 G
Communication Ports:EtherNet/IP, DH+, DH-485, RS-232
Isolation Rating:Communication Circuits: 500 VDC, Backplane: 1500 VAC

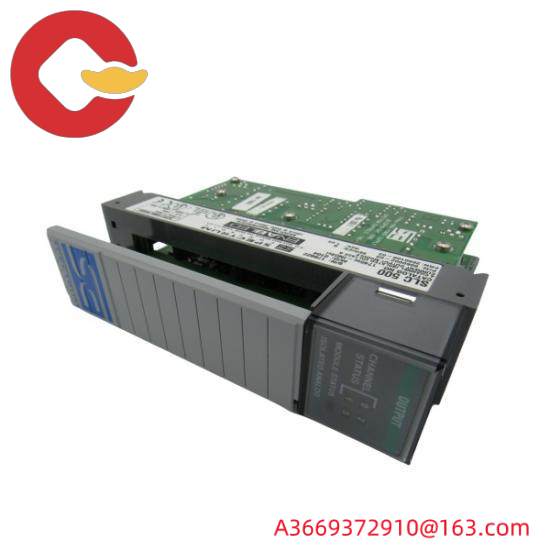

Introducing the Allen Bradley 1746SC-INO4VI Volt Output Analog Input Module, a critical component for enhancing precision in industrial control systems. Designed with an advanced technology, this module offers unparalleled accuracy in voltage measurement and conversion.
Featuring 2 channels for input, the module supports a common mode voltage range from -20 to 20 V, ensuring reliable operation across various industrial environments. Its absolute input voltage range of Plus/Minus 7.5 VDC or 7.5 VAC RMS ensures compatibility with diverse power sources.
With a precise input range of -20 to 20 MA, this module ensures accurate data acquisition. The output range of -10 to 10 V with a least significant bit (LSB) resolution guarantees high-fidelity signal transmission.
Equipped with overvoltage protection at 7.5 VAC RMS, the 1746SC-INO4VI is built to withstand harsh conditions. Its operating temperature range from 0 to 60 DEG C, along with non-condensing relative humidity between 5% and 95%, makes it suitable for a wide array of industrial applications.
The shock resistance of 30 G ensures robust performance even under unexpected mechanical stresses. This Analog Input Module is a testament to Allen Bradley’s commitment to providing top-tier solutions for modern industrial automation.
