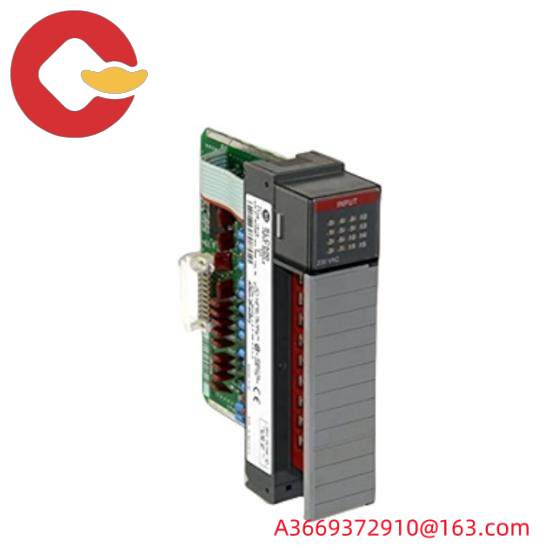

Allen Bradley 1746IM16 PLC Input Module

Product Type:PLC Module

Product ID:1746IM16

Allen Bradley Type Designation:Simplified Control Solutions

Module Type:AC Input Module

Input Voltage Range:170-265 VAC, 47-63 Hz

Input Current:12 mA @ 120V AC, nominal

Voltage Range:170-265 Volts AC

Number of Inputs:16

Weight:0.050 A

Backplane Current:0.4 kg

Enclosure Type:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

    Integrating advanced signal acquisition technology, the Allen Bradley 1746IM16 PLC Input Module ensures reliable data collection in industrial environments. This module is specifically engineered to handle a wide range of AC signals, making it a versatile choice for complex automation systems.

    With its robust design and high isolation standards, this module ensures secure communication circuits capable of withstanding up to 500 VDC isolation and 1500 VAC backplane isolation, providing unmatched reliability and safety in harsh industrial settings.

    Featuring a compact open-type enclosure, the Allen Bradley 1746IM16 is easily integrated into various mounting configurations, enhancing its flexibility and compatibility across different machinery and control systems.

    Engineered for precision and efficiency, this module supports a nominal current of 8 mA at 24 VAC/VDC, ensuring accurate and responsive signal interpretation. Its off-state input voltage is precisely regulated at 3 VAC/VDC, minimizing interference and maximizing operational accuracy.

    Built to withstand extreme temperatures ranging from 0 to 60 degrees Celsius, the Allen Bradley 1746IM16 is designed for durability and longevity, guaranteeing consistent performance in demanding industrial conditions. Its ability to operate within a broad range of environmental conditions makes it suitable for a multitude of applications across various industries.
