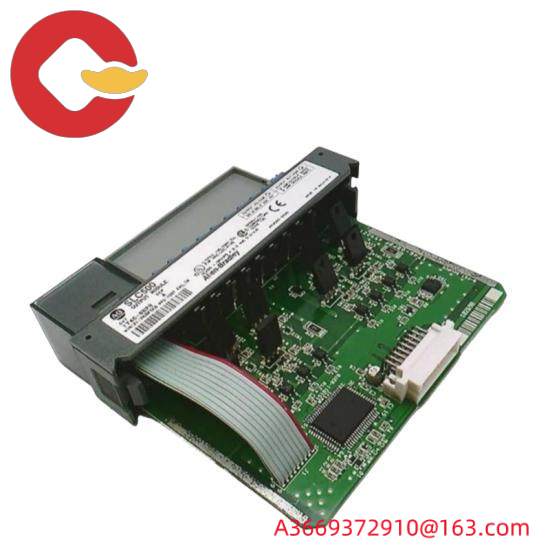

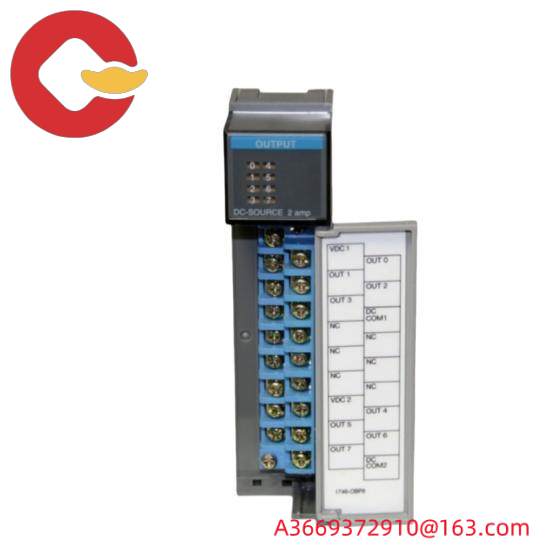

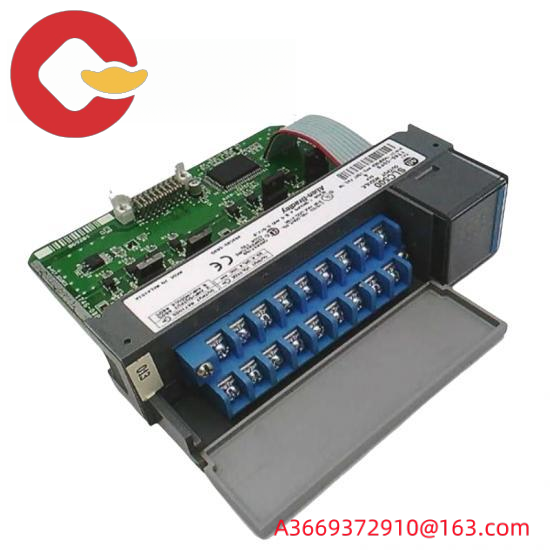

Allen Bradley 1746-OBP8 SLC Digital Output Module, 8-Point, Control Systems

Model Type:SLC 500

Model Number:1746-OBP8

Manufacturer:Allen Bradley

Number of Outputs:8

Output Type:Digital

Output Voltage:24 VDC

On-State Voltage Drop:≤ 1.2V

Off-State Output Leakage:≤ 1mA

Current Rating per Output:0.25A @ 60°C

Current Rating per Module:2A @ 60°C

Isolation:Communication Circuits: 500VDC, Backplane: 1500VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95% relative humidity non-condensing

Communication Interfaces:[“EtherNet/IP”,”DH+”,”DeviceNet”]

    The Allen Bradley 1746-OBP8 module is engineered to withstand harsh industrial environments, providing reliable digital output control.

    Featuring an advanced circuit design, this module ensures precise current control for each of its 8 channels, enabling smooth operation in a wide range of industrial processes.

    Designed with an open type enclosure, the 1746-OBP8 offers easy access for maintenance and configuration, facilitating seamless integration into existing control systems.

    Withstanding temperatures from -20°C to 60°C, it operates effectively in cold or hot conditions, ensuring consistent performance regardless of the environment.

    This module supports EtherNet/IP communication, enhancing connectivity and data transfer efficiency between PLCs and other networked devices, streamlining your automation system.
