Manufacturer:Allen-Bradley
Model:1746-OB16
Module Type:Digital DC Output Module
Number of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating (Backplane):0.28 A
Current Rating (Continuous per Output):0.25 A at 60° C
Current Rating (Continuous per Module):4 A at 60° C
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60° C
Environmental Conditions:5 – 95%

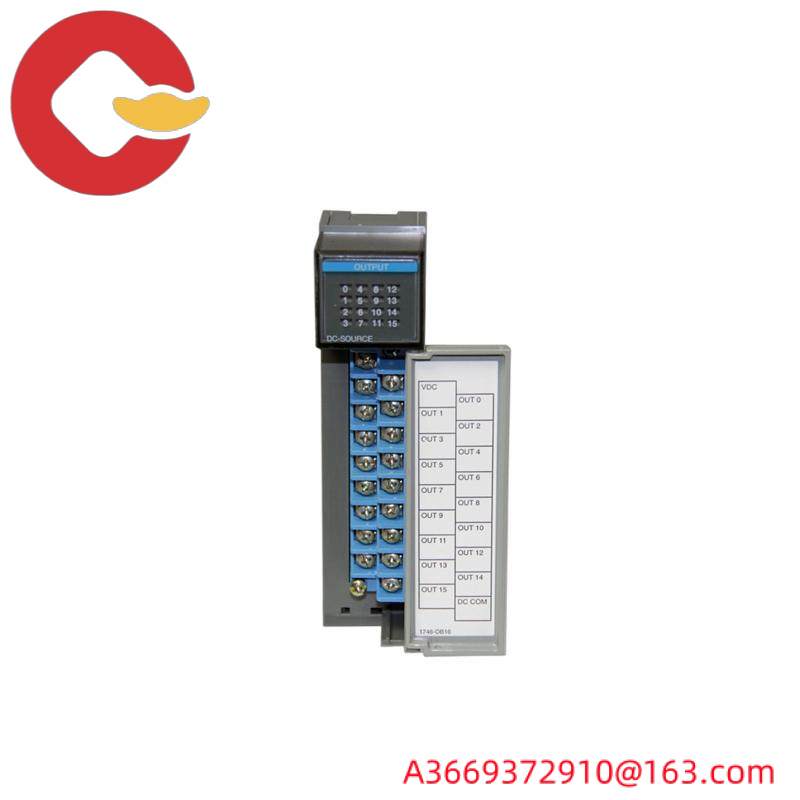

The AB 1746-OB16 is a robust and versatile module designed for seamless integration into industrial control systems. It delivers precise digital control with a high output capacity, making it suitable for demanding applications across various industries.
Equipped with advanced isolation features, this module ensures reliable performance even in challenging environmental conditions. Its open-type enclosure facilitates easy access for maintenance and customization, enhancing its usability in diverse settings.
Featuring a continuous current rating of 0.25 A per output at 60°C, the AB 1746-OB16 is capable of handling a wide range of loads efficiently. Its 16-channel design allows for flexible configuration, accommodating multiple control requirements within a single module.
With an input voltage of 24 VDC and a precise on-state voltage drop of 1.2 V, the AB 1746-OB16 ensures minimal power loss during operation. This results in enhanced efficiency and reduced maintenance costs over the long term.
Certified for use in industrial environments, this module meets stringent safety and quality standards, ensuring compliance with international regulations. It supports seamless integration with Allen-Bradley’s SLC 500 processor, offering enhanced system performance and reliability.
