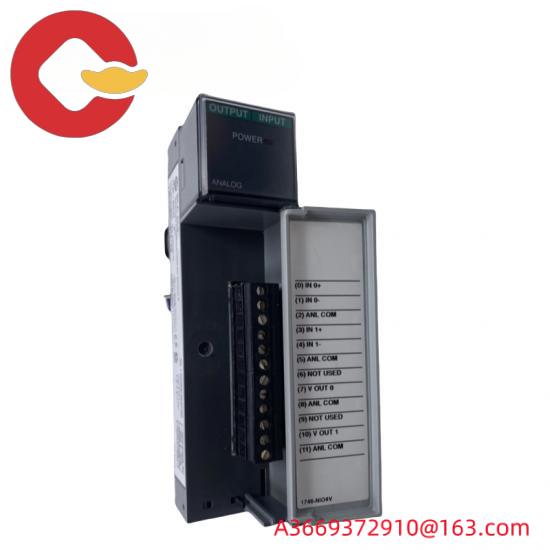

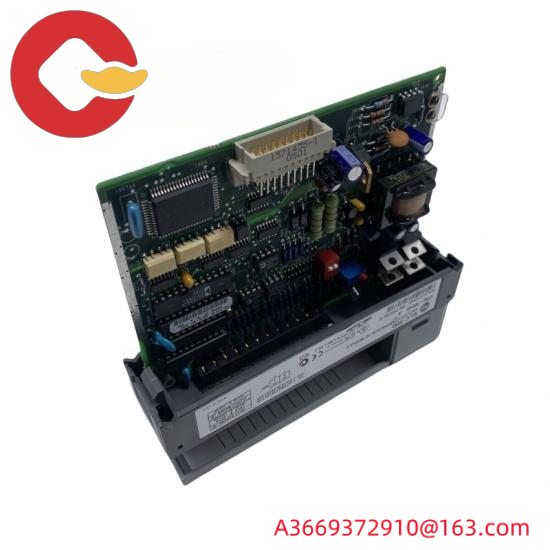

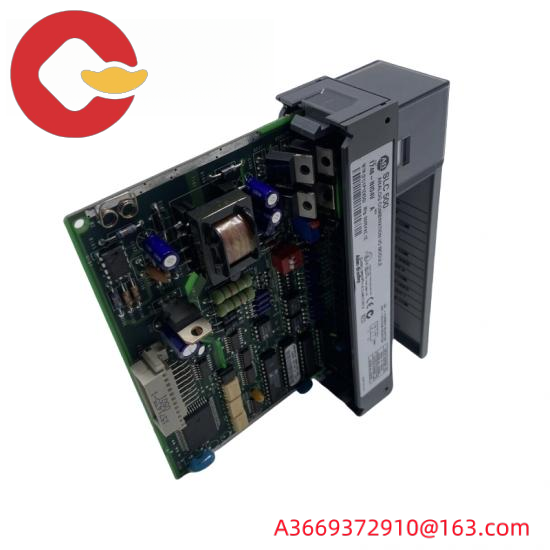

Allen Bradley 1746-NIO4V SLC 500 Analog Input & Voltage Output Module, 2 Inputs, 2 Outputs

Model:1746-NIO4V

Type:SLC 500 Analog Input & Voltage Output Module

Number of Channels:2 Inputs, 2 Outputs

Common Mode Voltage Range (Inputs):-20 To 20 V

Absolute Input Voltage (Inputs):Plus/Minus 7.5 VDC Or 7.5 VAC RMS

Input Range (Current):-20 To 20 MA

Absolute Input Current (Current):-30 To 30 MA

Output Range (Voltage):-10 To 10 V – 1 LSB

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (Voltage):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 55 MA

Isolation:Backplane: 500 VDC

    The Allen Bradley 1746-NIO4V is designed for high-resolution, industrial-grade applications requiring precise control over analog signals. This dual-channel module efficiently manages both input and output voltage levels, providing unparalleled reliability and accuracy.

    Equipped with a comprehensive set of specifications tailored for robust performance, this module supports a wide range of industrial environments, ensuring seamless integration into complex automation systems.

    Featuring advanced isolation techniques, the Allen Bradley 1746-NIO4V ensures minimal interference between circuits, guaranteeing consistent and stable operation even in the most challenging conditions.

    With its versatile input and output configurations, this module enables users to tailor their automation setups to specific needs, enhancing efficiency and productivity in manufacturing, process control, and other critical applications.

    Backed by Allen Bradley’s commitment to quality and innovation, the 1746-NIO4V is a trusted choice for engineers and technicians seeking reliable and high-performance analog module solutions.
