Number of Channels:4
Input Range:-20V to +20V
Absolute Input Voltage:±7.5VDC or ±7.5VAC RMS
Input Resolution:1LSB
Operating Voltage:24VDC ±10%
Current Output:0-21.5mA
Minimum Output Current:300mA
Isolation Voltage:500VDC
Enclosure Type:Open
Display:Status LED
Connection Cable:24-14 AWG
Mounting Type:Chassis

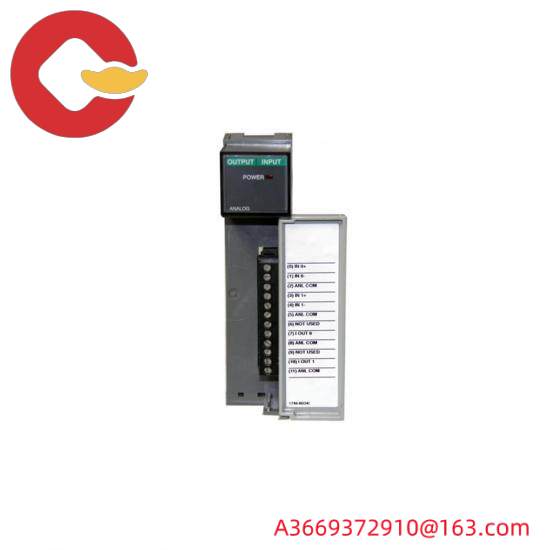

The Allen Bradley 1746-NIO4I 4-channel analog I/O modules are engineered to provide high-resolution, accurate data acquisition for critical industrial processes. Each channel supports a wide input range from -10V to +10V and a full-scale output of 10V DC, enabling precise control over various machinery and systems.
Featuring a robust open-type enclosure, these modules ensure reliable operation in harsh industrial environments. They are equipped with a status LED for easy monitoring of operational conditions, ensuring quick identification of any potential issues.
With support for EtherNet/IP, DH+, DH-485, and RS-232 communication protocols, the 1746-NIO4I seamlessly integrates with a wide range of industrial networks, enhancing system connectivity and efficiency. The open connection cables allow for flexible wiring, accommodating various installation requirements.
Designed with precision in mind, these I/O modules are ideal for applications requiring high accuracy, such as temperature control, pressure monitoring, and flow rate management. Their compatibility with Allen Bradley’s comprehensive ecosystem ensures seamless integration with existing control systems, maximizing productivity and reducing downtime.
Innovative features like the ability to configure output ranges from 0 to 21.5mA, along with backplane current draw ratings, make the Allen Bradley 1746-NIO4I an indispensable tool for engineers seeking precise control and enhanced system performance in their industrial automation projects.
