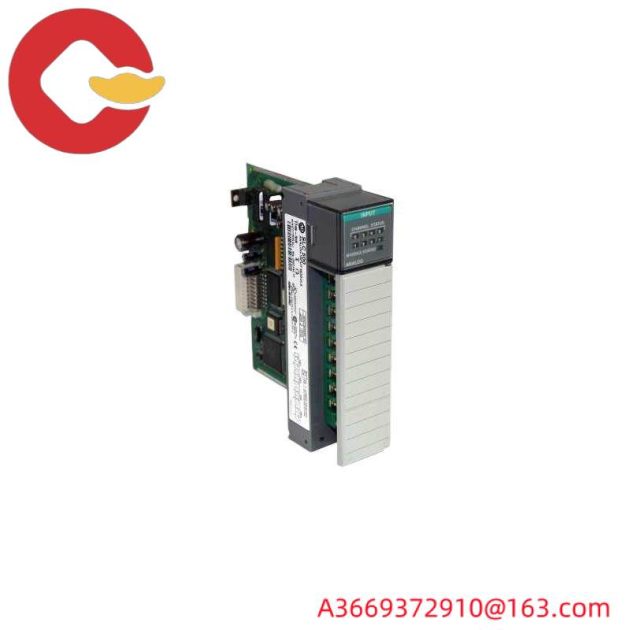

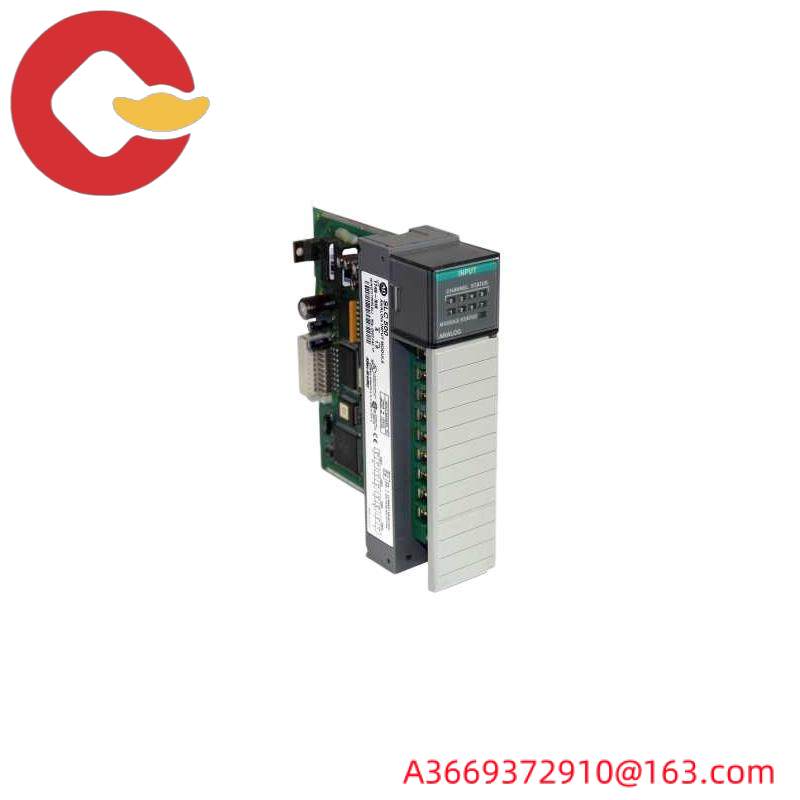

Allen Bradley 1746-NI8I SLC 500 Analog Input Module – 8 Channels

Number of Channels:8

Input Range:-10 VDC to +10 VDC

Operating Voltage:24 VDC ±10%

Minimum Input Current:300 μA

Current Output Ranges:4-20 mA, 0-20 mA, 0-21 mA, 0-21.5 mA

Backplane Current Draw:Max 250 mA at 24 VDC (when jumper set to rack)

Isolation:500 VDC

Environmental Conditions:Temperature: 0°C to 60°C, Humidity: 5% to 95% non-condensing

Shock Resistance:Up to 30 G

    The Allen Bradley 1746-NI8I module is designed for seamless integration into Allen-Bradley SLC 500 systems, offering high-resolution analog input capabilities for precise data collection.

    Featuring an open-type enclosure, this module is suitable for use in harsh industrial environments, ensuring robust performance and reliability.

    With its ability to handle a wide range of current outputs, the 1746-NI8I is ideal for applications requiring precise control over actuators, sensors, and other devices.

    Easy to configure and maintain, this module supports various voltage levels, providing flexibility for diverse industrial settings and ensuring compatibility with a broad spectrum of equipment.

    Equipped with status LEDs for monitoring operational status, the Allen Bradley 1746-NI8I module ensures real-time feedback, enabling proactive system management and maintenance.
