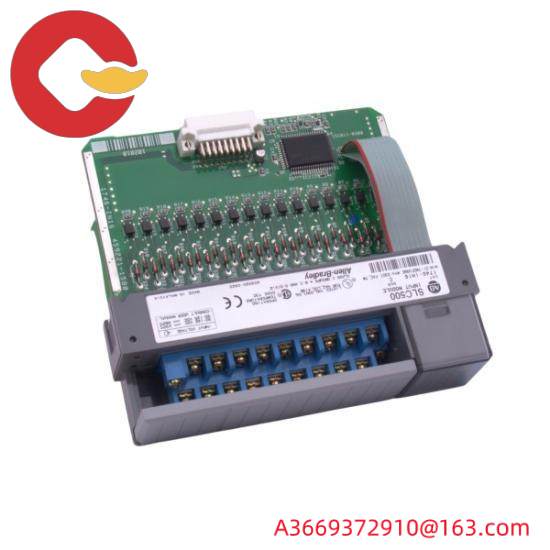

Allen Bradley 1746-IH16 Current Sinking DC Input Module – Industrial Automation Solution

Model Type:Input Module

Model Number:1746-IH16

Manufacturer:Allen Bradley

Input Voltage Range:DC 24V

Input Type:Current Sinking

Channels:16

Nominal Current:10mA

Off-State Input Voltage:3V

Isolation Rating:Communication Circuits: 500VDC, Backplane: 1500VAC

Processor:SLC 500

Enclosure Type:Open Type

Mounting Method:Chassis

Temperature Range:0°C to 60°C

Environmental Conditions:5% to 95% non-condensing relative humidity

Shock Resistance:30G

    The Allen Bradley 1746-IH16 Current Sinking DC Input Module is engineered for high-precision current sensing, offering unparalleled reliability in industrial automation environments. This module is ideal for monitoring and controlling current flows in complex systems, ensuring accurate signal acquisition without interference.

    Featuring a compact open-type enclosure, it’s easy to integrate into various industrial settings, providing direct connection to backplanes for seamless integration with Allen Bradley’s ControlLogix or CompactLogix PLC systems.

    With its ability to handle a continuous current of up to 0.2A per channel at 60°C, the 1746-IH16 ensures stable operation even under heavy load conditions, making it suitable for demanding applications where precision and reliability are paramount.

    Equipped with robust isolation ratings, this module safeguards against electrical noise and ensures reliable operation in harsh industrial environments. Its wide temperature range (-40 to +70°C) makes it suitable for use in extreme climates, enhancing its versatility and durability.

    Compliant with international safety standards such as UL, CE, CSA, and IEC, the Allen Bradley 1746-IH16 Current Sinking DC Input Module meets the highest industry requirements for safety and quality, giving you peace of mind when integrating it into your system.
