Model Type:SLC500
Model Number:1746-OB16
Number of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Current Rating:Backplane: 0.28 A | Continuous Current Per Output: 0.25 A @ 60 DEG C | Continuous Current Per Module: 4 A @ 60 DEG C
Isolation:Communication Circuits: 500 VDC | Backplane: 1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% Relative Humidity

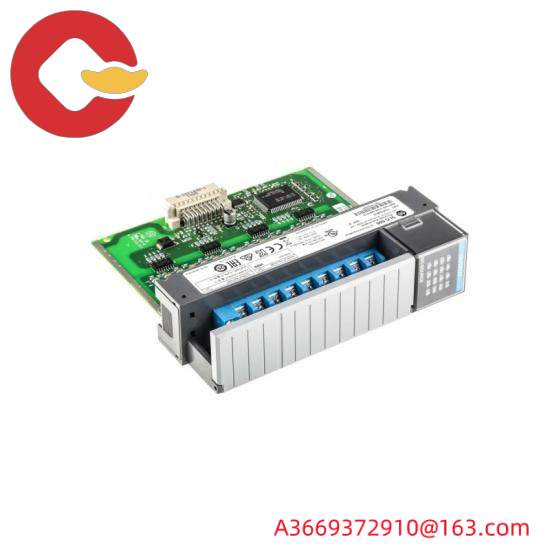

Crafted with precision and reliability, the Allen Bradley 1746OB16 is a cornerstone of modern industrial automation systems. This robust Digital DC Output Module ensures smooth operation across a wide range of applications, from factory floors to complex manufacturing environments.
With its 16 channels, the 1746OB16 offers unparalleled flexibility, allowing for the customization of control systems tailored to specific industrial needs. Its ability to handle voltages from 10 to 50 VDC makes it suitable for a variety of equipment, enhancing system efficiency and performance.
Featuring an on-state voltage drop of 1.2V and off-state leakage of 1MA, this module maintains exceptional control accuracy and reduces energy waste. The load of 1MA per channel ensures stable operation even under varying loads, making it a reliable choice for critical applications.
The current rating of 0.28A backplane and 0.25A continuous current per output at 60DEG C ensures that the module can handle demanding workloads without overheating or failure. The maximum continuous current per module at 60DEG C of 4A further amplifies its capability in managing complex systems.
The Allen Bradley 1746OB16 is equipped with excellent isolation capabilities, ensuring that communication circuits are protected against interference, and backplanes are safeguarded against high voltage surges. Its temperature rating of 0 to 60DEG C and environmental conditions of 5 to 95% RH guarantee robust performance in various operational environments, making it a versatile solution for industrial automation.
