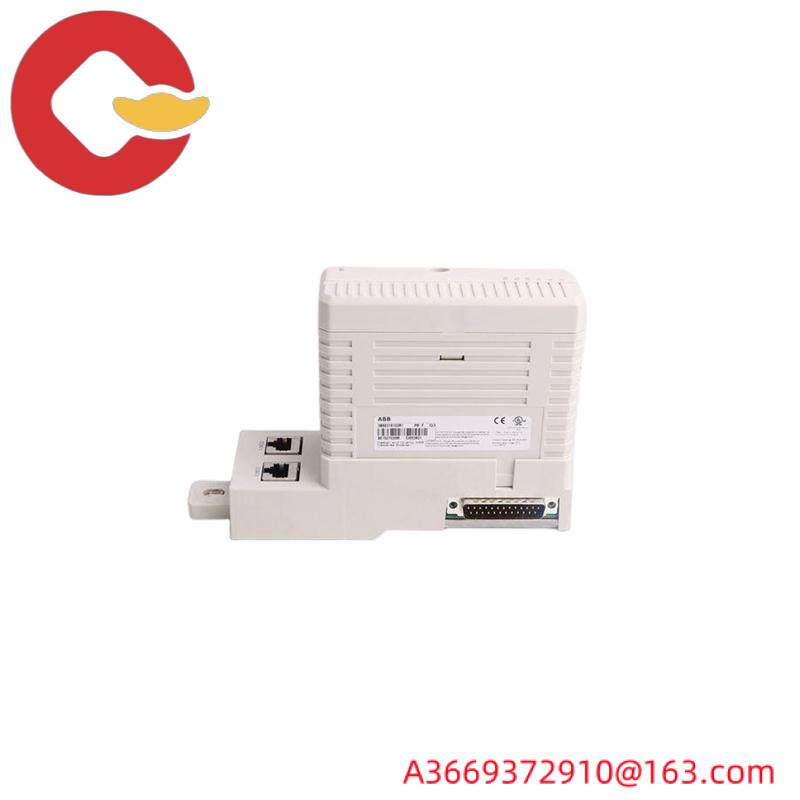

ABB DP620 3BHE300016R1 Pulse Counter – Precision Time Measurement Module

Operating Voltage:DC 24V

Counting Range:Up to 1,000,000,000 pulses

Accuracy:+/- 0.1% of full scale

Resolution:1 pulse per cycle

Environmental Conditions:Temperature: -20°C to +60°C, Humidity: 5% to 95% non-condensing

Dimensions:150mm x 100mm x 40mm

Weight:0.2kg

    The ABB DP620 3BHE300016R1 Pulse Counter boasts unparalleled accuracy and durability, making it ideal for critical applications requiring precise timing and counting functions. Its robust design ensures reliable operation in harsh industrial environments, withstanding extreme temperature fluctuations without compromising performance.

    Featuring a wide operating voltage range from 5 VDC to 30 VDC, this module is compatible with a variety of power sources commonly found in industrial settings. Its frequency range extends from 1 Hz to 1 MHz, accommodating diverse application requirements.

    With a counting capacity of up to 100 million counts and a resolution of just 1 μs, this pulse counter offers exceptional precision, essential for monitoring and controlling processes with high temporal demands. Its accuracy is maintained at +/- 0.02% of the reading plus 2 counts, ensuring consistent results over extended periods.

    Engineered for long-term reliability, the ABB DP620 3BHE300016R1 Pulse Counter can withstand temperatures ranging from -25°C to +70°C during operation and from -40°C to +85°C when stored. This wide tolerance makes it suitable for deployment across different industrial climates.

    Efficiency is further enhanced by its low power consumption, with a maximum of 100 mW, which reduces energy costs and extends battery life in portable applications. For seamless integration into existing systems, the module supports RS-485 communication, enabling simple data exchange with other devices in the network.
