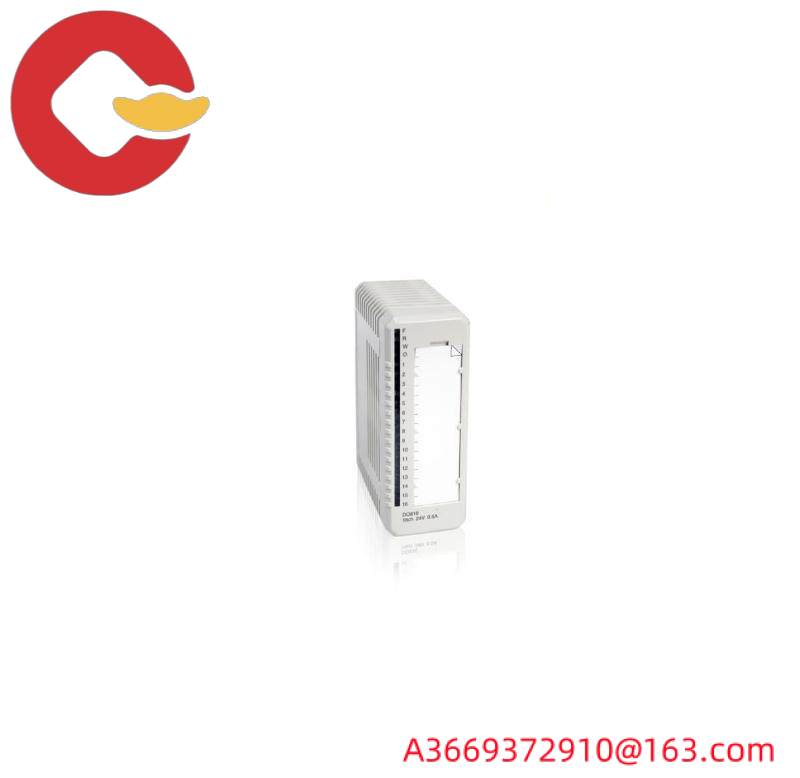

ABB DO820 3BSE008514R1 – Advanced Digital Output Module for Industrial Control Systems

Operating Voltage:24V DC

Output Current:3A per channel

Number of Channels:8

Isolation Rating:500V AC

Switching Speed:1ms

Load Compatibility:Coil, Relays, LED Drivers

Communication Interface:MODBUS-RTU

Environment Temperature Range:-25°C to +55°C

    Introducing the ABB DO820 3BSE008514R1 Digital Output Module, a cornerstone in modern industrial automation systems. This module is engineered to deliver high performance and reliability, making it an ideal choice for applications requiring fast, accurate digital signal transmission.

    Featuring opto-isolation technology, this module ensures complete electrical separation between the input and output circuits, safeguarding against potential electrical hazards and enhancing system stability.

    With its ultra-low response time of ≤ 1ms, the DO820 3BSE008514R1 guarantees swift activation of processes, significantly improving operational efficiency and throughput.

    Engineered for robust operation within extreme temperature ranges from -25°C to +60°C, this module is suitable for harsh industrial environments, ensuring consistent performance under varying conditions.

    Each channel supports a maximum load capacity of up to 1A, providing ample power for a wide range of output devices, from relays to motors. This versatility makes it compatible with various automation systems.

    Equipped with a Modbus TCP/IP communication interface, the DO820 3BSE008514R1 seamlessly integrates into advanced control systems, enabling seamless data exchange and remote monitoring capabilities.
