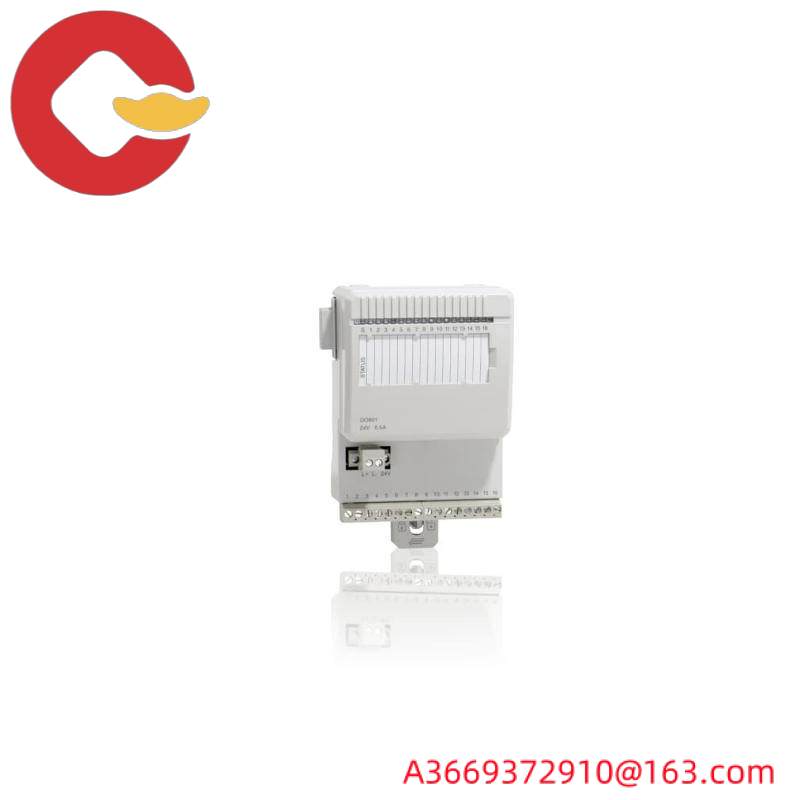

ABB DO801-3BSE020510R1: Digital Output Module, 24V, 16 Channels

Product Type:Digital Output Module

Module Designation:DO801

Model Code:3BSE020510R1

Output Voltage:24V

Channels:16

Isolation Rating:50V

Operating Current:Continuous: 100mA, Peak: 200mA

Operating Temperature Range:-25°C to +60°C

Dimensions:L x W x H: 58.5mm x 86.1mm x 102mm

Weight:0.24kg

Connection Type:Terminal Block

Communication Compatibility:Profibus-DP

Certifications:CE, UL

    The ABB DO801 3BSE020510R1 digital output module is engineered for precision control in industrial settings. Its robust design ensures long-lasting performance even under extreme conditions, making it suitable for applications ranging from factory automation to process control systems.

    Each of the 16 channels offers independent control with 24V supply voltage, enabling precise switching operations at high speeds. This makes it an ideal choice for applications where reliability and speed are paramount.

    With its compact size, the module can be easily integrated into existing systems, utilizing standard DIN rail for installation. This not only simplifies the setup process but also maximizes space efficiency on the control panel.

    The module supports various communication interfaces, ensuring seamless integration with different types of industrial controllers. Whether you’re working with PLCs or other automation equipment, the ABB DO801 3BSE020510R1 provides a versatile solution for enhancing system functionality.

    Featuring low power consumption, this module is energy-efficient, reducing operational costs without compromising on performance. It’s designed with user-friendliness in mind, offering straightforward configuration and diagnostics tools for quick troubleshooting and maintenance.
