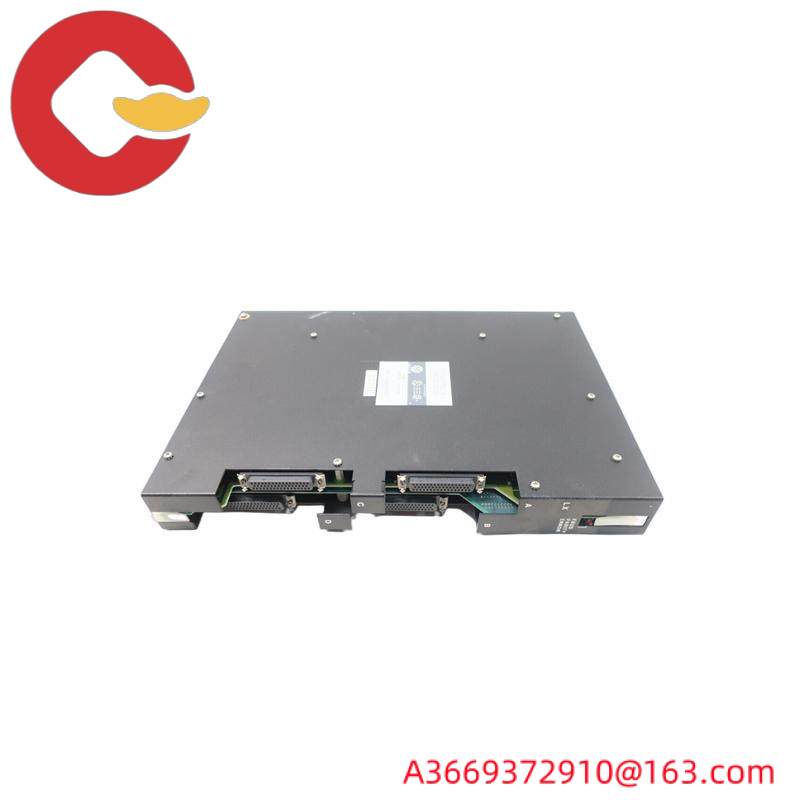

ABB AB 1775-LX3 EXPANSION MODULE – Advanced Control & Automation Solution

Model:AB 1775-LX3

Type:Expansion Module

Manufacturer:ABB

Functionality:[“Modular Design”,”Enhanced Connectivity”,”Flexible Configuration”]

Compatibility:[“AB ControlLogix PLC Systems”]

Power Consumption:5 W (Max.)

Operating Temperature:-20°C to +60°C

Humidity Range:5% to 95% RH (non-condensing)

Communication Protocol:[“EtherNet/IP”,”DeviceNet”]

Number of I/O Points:Up to 32 points

Dimensions (WxHxD):104.4 mm x 84.4 mm x 70 mm

Weight:Approx. 200 g

    The AB 1775-LX3 Expansion Module from AB Control Techniques is engineered for high-performance, ensuring reliable operation in demanding industrial environments. With its robust design and advanced connectivity options, it seamlessly integrates with existing automation systems, enhancing efficiency and productivity.

    Featuring 16 digital inputs and 16 digital outputs, this module offers versatile control capabilities, making it suitable for applications requiring precise data acquisition and process control. Its compatibility with Modbus RTU and DeviceNet protocols ensures seamless communication across various devices, streamlining system integration.

    The module is built to withstand harsh conditions, boasting a temperature range of -20°C to +60°C and a humidity tolerance of 5% to 95% without condensation. This durability, combined with its IP20 enclosure type, ensures it remains operational in challenging industrial settings.

    For easy installation and maintenance, the AB 1775-LX3 is designed with a panel mount feature, allowing for efficient placement within industrial machinery and control panels. Additionally, its low power consumption of less than 1W contributes to energy-efficient operation, reducing overall system costs.

    To further enhance usability, the module includes comprehensive documentation and support resources, enabling quick setup and minimizing downtime. Whether you’re upgrading existing systems or building new ones, the AB 1775-LX3 Expansion Module is an essential component for achieving optimal performance in industrial automation.
