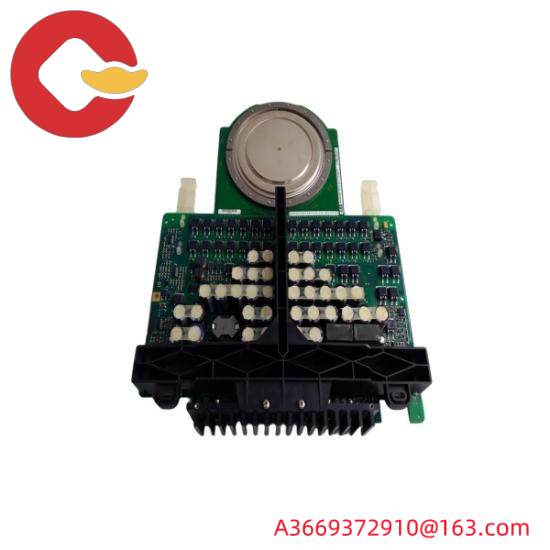

ABB 3BHB020538R0001 – High Voltage Thyristor Module

Power Rating:40kA @ 1000V DC

Operating Temperature Range:-40°C to +85°C

Thermal Rating:120W

Insulation Class:Class F

Current Handling Capacity:Up to 5000A

Switching Frequency:Up to 1kHz

    The ABB 3BHB020538R0001 is designed to provide superior performance in high voltage thyristor applications, ensuring consistent reliability and efficiency in power management systems.

    Featuring an advanced thermal design, this module efficiently manages heat dissipation, extending its lifespan under various operating conditions.

    With a robust mechanical interface, the module ensures secure mounting and easy integration into existing systems, minimizing installation time and costs.

    Equipped with state-of-the-art digital control signals, it offers precise control over voltage and current levels, enhancing system stability and responsiveness.

    Built to withstand extreme temperatures from -40°C to +70°C, this module operates reliably in harsh industrial environments, providing uninterrupted service in diverse applications.

    Certified for safety and quality, the ABB 3BHB020538R0001 adheres to international standards, ensuring compliance and peace of mind for our customers.
