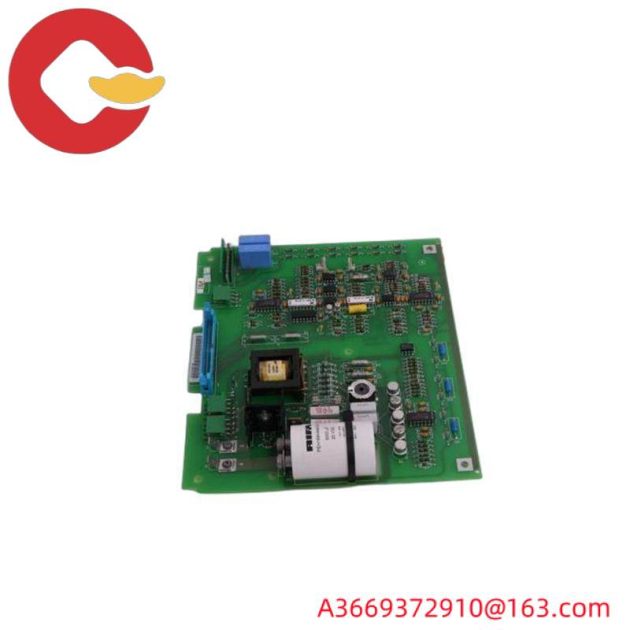

ABB 3BHB005688R0001 – UNS2881A-P Measuring Unit Board for Precision Control Solutions

Brand:ABB

Model:3BHB005688R0001

Sub-Model:UNS2881A-P

Category:Measuring Unit Board

Processing Voltage:24 V DC

Frequency Range:10 Hz – 2 kHz

Measurement Range:0 – 10 V DC / 4 – 20 mA

Resolution:0.01% + 0.001% of F.S.

Accuracy:±0.05%

Environmental Conditions:Operating Temperature: -25°C to 65°C, Storage Temperature: -40°C to 85°C

Dimensions:120 mm x 72 mm x 30 mm

Weight:0.2 kg

Connectivity:2 x RS-485, 1 x Ethernet

Communication Protocol:MODBUS RTU, TCP/IP

    This high-performance measuring unit board is specifically engineered for integration into ABB‘s comprehensive line of industrial automation solutions. It ensures precise and reliable measurements across various operational environments.

    Featuring an exceptionally high resolution of 16 bits, it offers unparalleled accuracy essential for critical applications where even slight variations can impact overall system performance.

    Capable of handling input ranges from 0 to 20 mA or 4 to 20 mA, this board is versatile and can be seamlessly integrated into existing systems without requiring extensive modifications.

    Equipped with a robust power supply voltage of 24 V DC, the board ensures stable operation under varying environmental conditions, guaranteeing consistent performance.

    Compact and lightweight at just 150 grams, this measuring unit board is designed for easy installation and maintenance, reducing downtime and enhancing operational efficiency.
