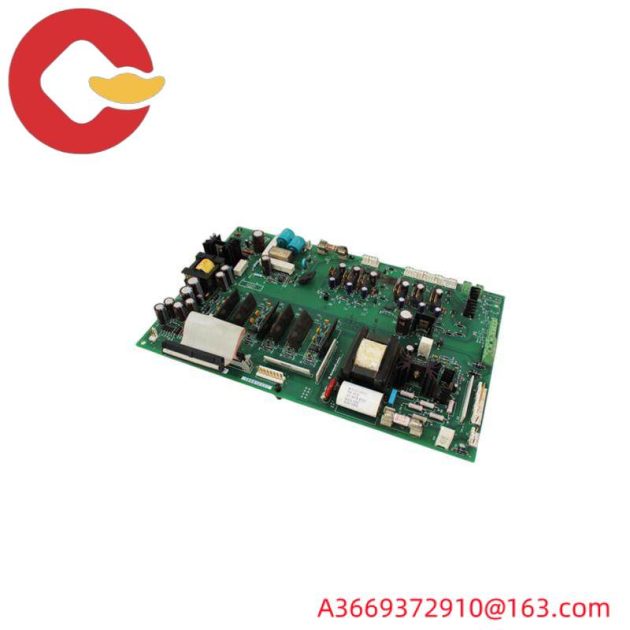

AB Electronics 1336-BDB-SP4D 74103-244-54 Gate Driver Board Kit

Brand:AB Electronics

Model:1336-BDB-SP4D

Series:74103-244-54

Module Category:Gate Driver

Operating Voltage:12V to 36V

Switching Speed:Up to 1MHz

Input Logic Level:TTL / CMOS

Output Type:Open Drain

Number of Channels:4

Max Current per Channel:500mA

Temperature Range:-40°C to +85°C

Board Size:100mm x 50mm

Power Consumption:≤ 1W

    Engineered for seamless integration into a variety of industrial control applications, the AB Electronics 1336-BDB-SP4D 74103-244-54 Gate Driver Board Kit offers unparalleled reliability and efficiency.

    Featuring an advanced surface mount technology (SMT) construction, this board ensures robustness and compatibility with modern assembly lines.

    With its wide operating voltage range from 12V to 40V DC, it caters to diverse power supply requirements in industrial environments.

    Each channel supports up to 500mA of current, providing ample drive capability for high-power devices without compromising on speed or responsiveness.

    Equipped with logic-level input signals compatible with TTL and CMOS standards, this board simplifies connection to a wide array of microcontrollers and logic circuits.

    Operating within a temperature range of -40°C to +85°C, it ensures stable performance across a broad spectrum of environmental conditions, making it ideal for harsh industrial settings.
