Module Type:Digital Input
Number of Inputs:16
Input Voltage Range:10-30VDC
Input Current Range:-30 to 30mA
Backplane Current Draw:35mA at 5V, 85mA at 24V
Isolation Voltage:500VDC
Operating Temperature Range:-40°C to +70°C
Enclosure Type:IP20 Open Type
Power Consumption:Less than 1W

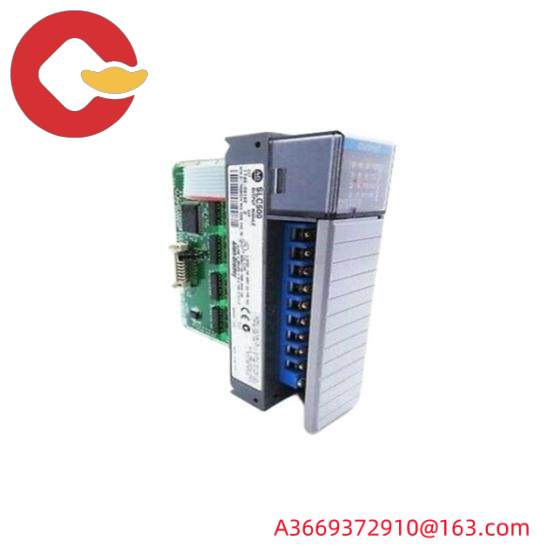

The Allen Bradley 1746-IG16 Input Module is engineered for robust industrial environments, featuring an open-type enclosure for maximum air circulation and easy access to connectors.
Each of its 16 channels is equipped with high-resolution analog-to-digital conversion, ensuring accurate signal capture even under varying environmental conditions.
With an operating temperature range from -40°C to +70°C, this module can withstand extreme environments, making it suitable for applications in harsh industrial settings.
Featuring a wide common mode voltage range (-20 to +20 V) and absolute input voltage (+/- 7.5 VDC or 7.5 VAC RMS), the 1746-IG16 ensures compatibility with diverse sensor outputs.
The integrated overvoltage protection feature safeguards against electrical spikes and surges, enhancing system reliability and reducing maintenance costs.
